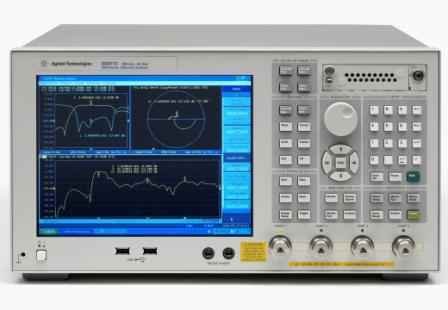

agilent E5061B 网络分析仪

电话:0755-28169165传真:0755-81750961手机:180-8888-1312
E5061B is a network analyzer, covering the broad frequency range of 5 Hz to 3 GHz , in one instrument. Applications range from general RF measurements such as filter and amplifier test to LF (low frequency) measurements such as loop-gain ev


E5061B

S-parameter test port

  • 5 Hz to 3 GHz
  • Wide dynamic range: 120 dB dynamic at > 1 MHz, 90 dB at < 100 Hz

Gain-phase test port

  • 5 Hz to 30 MHz
  • Switchable 1 MΩ/50 Ω input

Built-in DC bias source

  • 0 to ±40 Vdc
  • Can be added to AC test signal (for both S-parameter and Gain-phase test port)
  • Can be used as a sweepable DC source

Compact form factor

  • 254 mm depth
