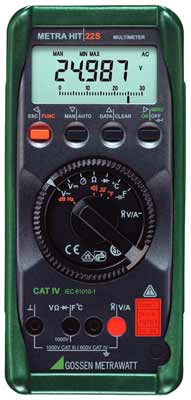

METRAHit 22S 四位半数字万用表图片
METRAHit 22S英文资料
- Display range: +/- 30,000 digits
- Inherent deviation: 0.05% of reading + 3 digits
- Measuring functions: 300.00 mV - 1000.0 V, 300.00 Ohm - 30.000 MOhm, 3.000 nF - 30.000 mF, dBV, Hz, °C/°F,
- Stopwatch, 10 ms - 100 min.
- mA - AAC via additional WZ12C current sensor with mV output
- MIN-MAX measurement value storage, DATA hold
- Continuity and diode testing
- Frequency and pulse generator, 1 Hz to 1 kHz
- Automatic range selection and battery cutoff
- Patented, automatic blocking system (ABS)
- IR data interface
- Integrated quartz movement
- CSA certification
- DKD calibration certificate
- CAT.IV @ 600 V or CAT.III @ 1000 V per IEC 61010-1
METRAHit 22S中文资料
4 3/4位显示精度
|
V/A/dB/Ohm/F/Hz/°C/°F/二极管
|
红外接口/大屏幕/LCD背景灯
|
同时显示3个测量值
|
真有效值测量(TRMS)
|
测量精度:0.05%
|
高性能低价位普及性
|
DKD认证书
|
