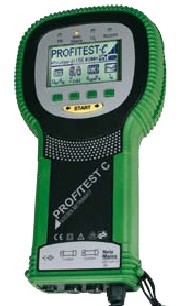

PROFITEST C 安规测试仪图片.
Test Instruments – DIN VDE 0100 / IEC 364-6-61
Protective measures test instrument for loop resistance measurement,
calculation of short-circuit current and display of suitable fuse ratings.
In addition to complete testing for the effectiveness of RCCBs, the
instrument is also capable of phase sequence analysis, as well as the
measurement of voltage and frequency.
■ Rugged 2-component housing with integral impact guard – perfect
for use by on-site installation teams and an ideal supplement to the
PROFITEST 204 in accordance with the new EN 60204 standard.
■ Large, illuminated, anti-glare graphic display allows for clear, intuitive,
menu-driven operation.
■ Quick, easy operation with the help of just 5 keys
■ Integrated measured value memory can be read out via the
IrDa interface which is included as a standard feature.
■ Print-outs / reports can be generated via the interface.
■ The interface can also be used for updates to assure that the instrument
is always current.
■ Stored measured values can be accurately assigned to their respective
electrical circuits, distributors and buildings with the alphanumeric
keypad.
■ Go / No-Go indication via LEDs, and instructions in the display
■ The desired language can be selected.
■ Integrated phase tester
■ Carrying strap, stand, holders for test probes and cables and a
recharging socket for NiCd/NiMH batteries
■ Dimensions: 275 x 140 x 65 mm (H x B x T);
weight: 1.2 kg with batteries
■ Power supply: 4 AA batteries per IEC LR 14
Software:
■ PS3: software for test instruments including systems and equipment
management, and reports generating (see page 110)
■ PC.doc-WORD/EXCEL / PC.doc-ACCESS: documentation and
management software for measurements per DIN VDE 0701/0702
and 0100 (see page 109)
■ WinProfi: for communications between the test instrument
and the PC (included)
