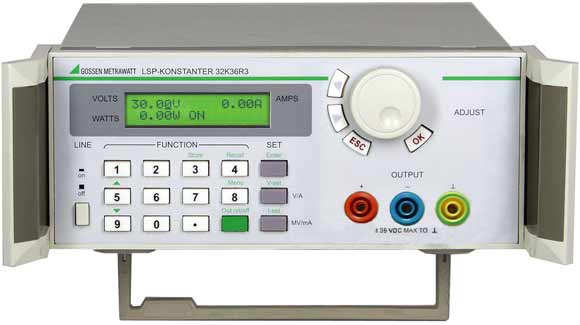

LSP Konstanter series 32K laboratory power supplies are high precision DC power supplies for use in R&D, production, service and training.
Three variants are available with approximately 100 W output power.
The devices feature excellent regulating accuracy and minimal residual ripple, and outstanding ease of operation.
The devices feature excellent regulating accuracy and minimal residual ripple, and outstanding ease of operation.
- Floating output
- Safe electrical separation
- Output can be switched on and off
- Voltage and current regulating (square wave)
- Rotary encoders for adjusting voltage and current
- Adjustment is also possible with keys
- Multifunctional LCD
- Setup memory for 10 device settings
- Protective functions
- Attractive design, benchtop instrument, suitable for mounting to a 19" rack
- Computer control with RS232 or RS485 via interface adapter possible
|
Short Name
|
LSP 100-18
|
LSP 100-36
|
LSP 100-72
|
|
Article No.
|
K110A
|
K111A
|
K112A
|
|
Type
|
32K18R5
|
32K36R3
|
32K72R1.5
|
|
Front panel output
|
1
|
1
|
1
|
|
Output voltage
|
0 to 18 V
|
0 to 36 V
|
0 to 72 V
|
|
Output current
|
0 to 5 A
|
0 to 3 A
|
0 to 1.5 A
|
|
Voltage setting resolution
Current |
1 mV at 0 ~ 3.999 V
|
||
|
5mV at 4~18V
|
10mV at 4~36V
|
20mV at 4~75V
|
|
|
< = 1 mA
|
|||
|
Mains correction, voltage
Current |
0.01% + 3 mV
|
||
|
0.02% + 10 mV
|
|||
|
0.02% + 8 mA
|
|||
|
Load correction, voltage
Current
|
0.02% + 10 mV
|
||
|
0.02% + 8 mA
|
|||
|
Ripple
|
< 2 mV RMS
|
||
|
Mains input
|
115 / 230 V AC
|
||
|
|
50 / 60 Hz
|
||
|
Dimensions
WxHxD (mm) |
½ 19", 2 standard height units,
approx. 215 x 100 x 280 |
||
|
Weight
|
approx. 6 kg
|
||
