SSP 程控电源是德国GMC生产的一款可编程电源,SSP 程控电源良好的稳定性是德国产品的可靠见证,浚海仪器提供SSP 程控电源专业的技术支持和完善的售后服务.


SSP 实验室程控电源

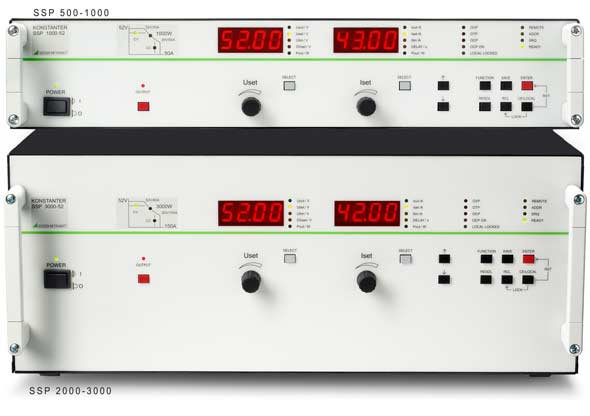

SSP 实验室程控电源图片

KONSTANTER SSP-500, 1000, 2000 and 3000
(Single-Output System Power Supplies)are single output, computer controlled laboratory power supplies for universal use in R&D, production and testing.
Special circuitry allows for jumping from 0 V to nominal voltage (and back again) under nominal load conditions within response times of less than 10 ms.
The analog interface provides for monitor and auxiliary outputs, as well as programmable trigger and setpoint inputs.
  • Wide range of functions, minimal power loss
  • Auto-ranging output with 500, 1000, 2000 or 3000 W
  • Voltage and current regulated output
  • Increased output power for brief intermittent periods
  • Very short response times thanks to special circuitry
  • Dynamic sink mode operation
  • Excellent dynamic control parameters
  • Minimal residual ripple
  • Output ON/OFF function
  • Lockable control elements
  • Sequence controls for the generation of voltage and current sequences
  • Master-slave operation with parallel or series connection
  • Protection against overvoltage, overcurrent and excessive temperature
  • Analog interface
  • Output terminals at rear panel

    Options:
  • RS 232 and IEEE 488 interfaces (with measurement value querying)
  • Driver software for LabVIEW, LabWindows and HP VEE


Designation
Power
(W)
Voltage
(V)
Current
(A)
Type
Article No.
SSP 500-52
500
0-52
0-25
62 N 52 RU 25 P
K344A
SSP 500-80
500
0-80
0-12.5
62 N 80 RU 12.5 P
K341A
SSP 1000-52
1000
0-52
0-50
62 N 52 RU 50 P
K345A
SSP 1000-80
1000
0-80
0-25
62 N 80 RU 25 P
K343A
SSP 2000-52
2000
0-52
0-100
64 N 52 RU 100 P
K352A
SSP 2000-80
2000
0-80
0-50
64 N 80 RU 50 P
K351A
SSP 3000-52
3000
0-52
0-150
64 N 52 RU 150 P
K362A
SSP 3000-80
3000
0-80
0-75
64 N 80 RU 75 P
K361A
