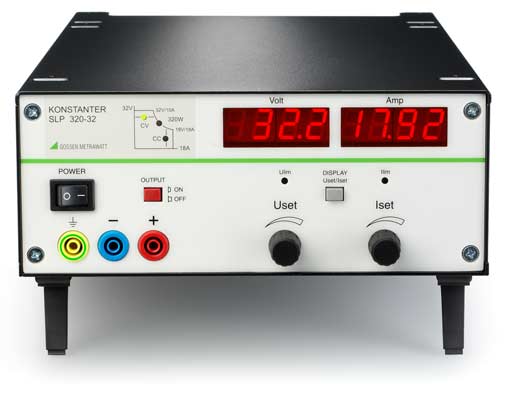

SLP 320 可编程电源图片
Series SLP 120, 240 and 320 KONSTANTERs (Single-Output Laboratory Power Supplies) are single output, primary switched-mode laboratory power supplies for universal use in R&D, production, training and service applications.
Our innovative BET circuit technology (bidirectional energy transformation) allows for practically load independent response times.
- Compact design and minimal weight
- Auto-ranging output with 120, 240 or 320 W
- Minimal power loss
- Voltage and current regulated output
- Increased output power for brief intermittent periods
- Very short response time thanks to BET technology
- Dynamic sink mode operation
- Excellent dynamic control parameters
- Minimal residual ripple
- Output ON/OFF function
- Manual adjustment with ten-turn potentiometer
- Remote sensing
- Master-slave operation with parallel or series connection
- Protection against excessive temperature
- Floating output terminals at front and rear panel
- Can be electrically and mechanically combined with multi-output devices
- Mounting accessories for 19" racks
|
名 称
|
功率
(W) |
电压
(V) |
电流
(A) |
型 号
|
订货号
|
|
SLP 120-20
|
120
|
0-20
|
0-10
|
32 N 20 R 10
|
K220A
|
|
SLP 120-40
|
120
|
0-40
|
0-6
|
32 N 40 R 6
|
K221A
|
|
SLP 120-80
|
120
|
0-80
|
0-3
|
32 N 80 R 3
|
K222A
|
|
SLP 240-20
|
240
|
0-20
|
0-20
|
32 N 20 R 20
|
K230A
|
|
SLP 240-40
|
240
|
0-40
|
0-12
|
32 N 40 R 12
|
K231A
|
|
SLP 240-80
|
240
|
0-80
|
0-6
|
32 N 80 R 6
|
K232A
|
|
SLP 320-32
|
320
|
0-32
|
0-18
|
32 N 32 R 18
|
K234A
|
